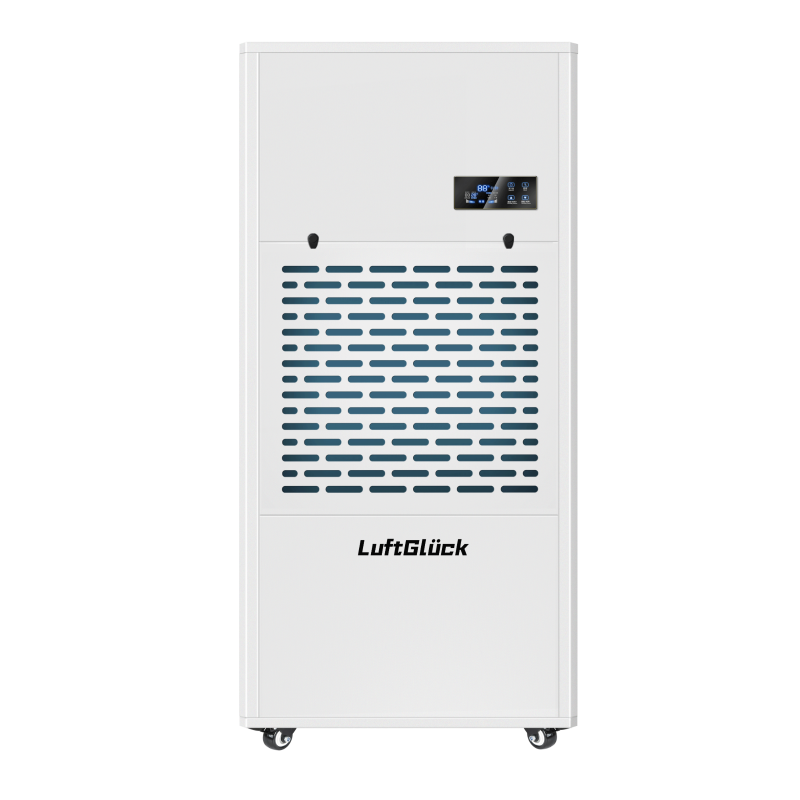

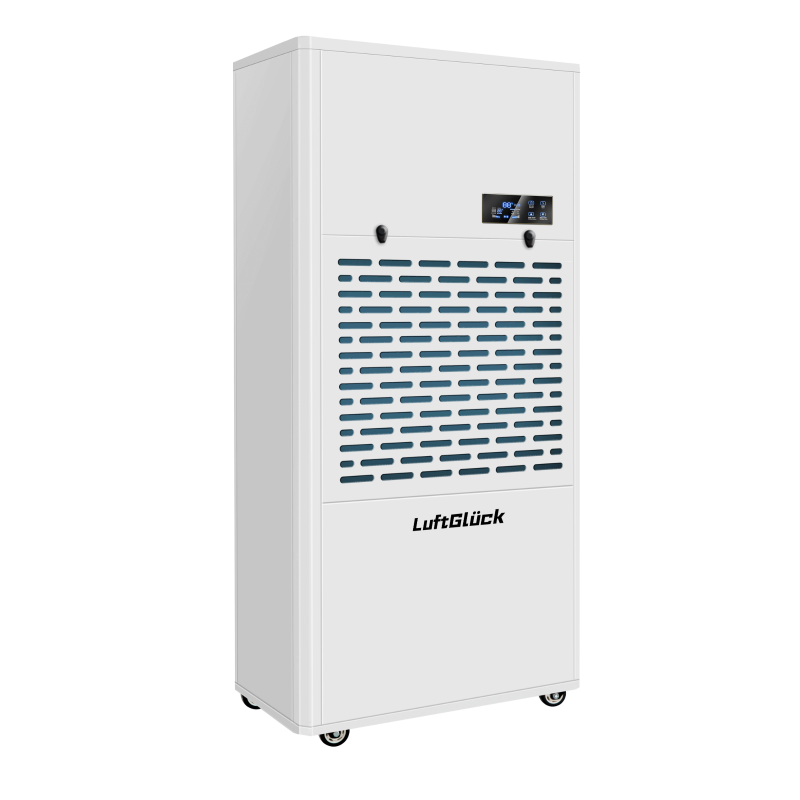

Product Features Overview
1．Pre-installed RS485 Communication Interface:
Designed for centralized control and humidity sensor fault self-diagnosis, enhancing system intelligence and reliability.
2．Microcomputer Auto-Defrost System:
Utilizes advanced microcomputer control technology for automatic defrosting, ensuring stable operation and significantly improving dehumidification precision.
3．Full-Metal Structure with Electrostatic Spray-Painted Sheet Metal Casing:
Constructed with an all-metal frame and electrostatic spray-painted exterior, combining durability with an aesthetically pleasing design.
4．Internationally Renowned Brand Compressor:
Equipped with a German-standard-certified imported compressor, guaranteeing high efficiency and extended service life.
5．Hose Continuous Drainage Design:
Features a unique hose-based continuous drainage system, effectively resolving drainage challenges and enhancing practicality.
6．Bottom-Mounted Universal Wheels:
Integrated 360° swivel wheels enable effortless mobility, facilitating flexible deployment across workspaces.
7．Frequency Conversion Energy-Saving Technology:
Advanced German-standard frequency conversion technology reduces energy consumption by ~10% compared to conventional devices, aligning with eco-friendly production principles.
These features collectively deliver high efficiency, reliability, and energy-saving humidity control solutions.
Product Specifications
Parameter |
Details |
Model |
LF-9240B |
Daily Dehumidification |
240L/D |
Max Power Consumption |
4400w |
Power Supply |
400V-50Hz (German DIN Standard) |
Humidity Adjustment Range |
RH10-95% |
Operating Temperature |
5-38℃ |
Applicable Area |
350m²–400m² (3m ceiling height) |
Net Weight |
110kg |
Refrigerant |
R-32 (German TÜV Certified) or R-410A（Provided that use is permitted, the associated costs are reduced.） |
Humidity Control Precision |
±3%RH |
RS485 Protocol |
Support |
Dimensions (L × W × H) |
783*470*1510mm |
*Product specifications may be modified without notice to improve performance.
Additional Technical Highlights
● Hydrophilic Aluminum Fins for Evaporator/Condenser:
The 0.1mm hydrophilic aluminum foil coating enables rapid condensation and anti-fouling performance, boosting efficiency. Internally threaded copper tubes further optimize heat exchange and dehumidification capacity.
● High-Sensitivity Temperature Control Panel:
Built with Schneider-brand components, the panel ensures precise temperature monitoring, stable operation, and reliable system performance.
Note: Voltage and refrigerant standards have been adjusted to comply with German regulations (DIN/TÜV).
